High pressure homogenizer model selection
High Pressure Homogenizer Model Selection
Compare Smallnm lab, pilot, and industrial homogenizers by flow rate, pressure, sample volume, sanitation requirements, and application. Shortlist the right model before requesting a factory-direct quotation.
Start here when you need model guidance rather than a single product specification.
Choose by Production Stage
Start with your batch size and process goal. Our technical team can confirm the final pressure, valve design, and sanitary configuration after reviewing your material.
Lab Homogenizers
5-10 L/h and 10 L/h models for expensive samples, nanoemulsions, formulation screening, and small-volume process development.
Best when sample volume is 30-500 mL. Validation and scale-upPilot Homogenizers
10-40 L/h models for pilot batches, process transfer, customer trials, and early production validation before full-scale investment.
Best when you need repeatable pilot data. Continuous productionIndustrial Homogenizers
500-1000 L/h models for production lines in beverage, dairy, sauce, coatings, chemical dispersion, and medium-to-large industrial output.
Best when throughput drives ROI.Model Comparison
Use this table to shortlist a model before requesting a quotation. Final selection depends on viscosity, target particle size, pressure, product sensitivity, and sanitation requirements.
| Model | Flow Rate | Max Pressure | Minimum Sample | Best Fit | Action |
|---|---|---|---|---|---|
| 5-10 L/h Lab Homogenizer | 5-10 L/h | 1500 bar | 50 mL | R&D, formulation, small samples | View |
| PTH-10 Lab Homogenizer | 10 L/h | 1800 bar | 30 mL | Lab research, nanoemulsion, pharma trials | View |
| 10-20 L/h Pilot Homogenizer | 10-20 L/h | 1500 bar | 100 mL | Pilot trials and small-batch development | View |
| PTH-20 Pilot Homogenizer | 20 L/h | 1800 bar | 50 mL | Pilot production and high-pressure validation | View |
| 40 L/h Production Homogenizer | 40 L/h | 1500 bar | 200 mL | Small production and process transfer | View |
| 500 L/h Industrial Homogenizer | 500 L/h | 1000 bar | 5 L | Industrial food, chemical, and coating production | View |
| 1000 L/h Industrial Homogenizer | 1000 L/h | Application-specific | Project-based | Large-scale continuous production lines | Ask |
30-500 mL samples
Lab Homogenizers
Built for formulation teams that need repeatable high-pressure results with limited or expensive materials.

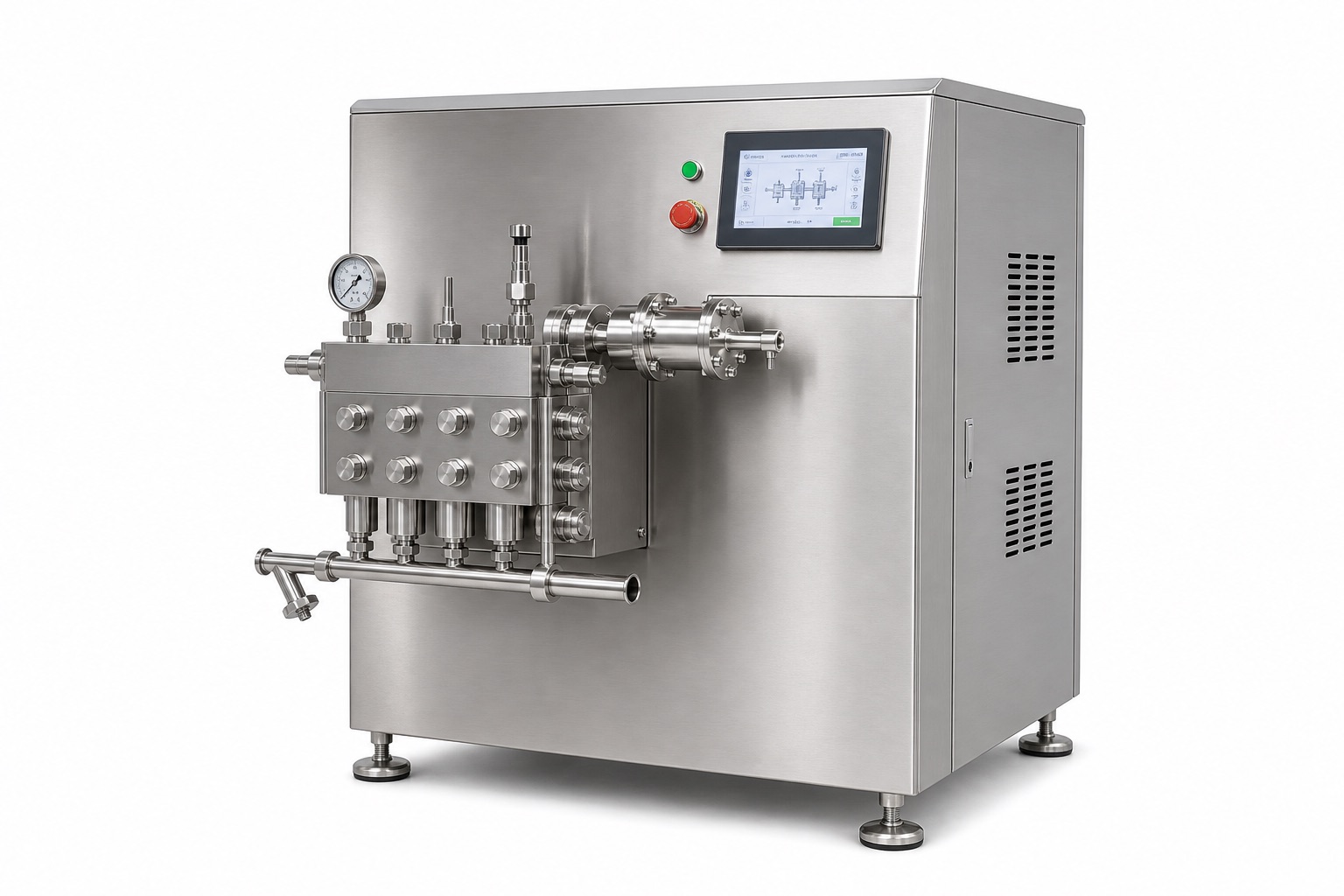

5-10 L/h Lab Homogenizer
| Pressure | Up to 1500 bar |
| Flow Rate | 5-10 L/h |
| Min Sample | 50 mL |
| Application | R&D, Formulation |
PTH-10 Lab Homogenizer
| Pressure | Up to 1800 bar |
| Flow Rate | 10 L/h |
| Min Sample | 30 mL |
| Application | Lab Research |
Scale-up and validation
Pilot Homogenizers
Designed for pilot production, customer sample runs, and lab-to-production scale-up where process data matters.
10-20 L/h Pilot Homogenizer
| Pressure | Up to 1500 bar |
| Flow Rate | 10-20 L/h |
| Min Sample | 100 mL |
| Application | Pilot, Small Batch |
PTH-20 Pilot Homogenizer
| Pressure | Up to 1800 bar |
| Flow Rate | 20 L/h |
| Min Sample | 50 mL |
| Application | Pilot Production |
40 L/h Production Homogenizer
| Pressure | Up to 1500 bar |
| Flow Rate | 40 L/h |
| Min Sample | 200 mL |
| Application | Small Production |
Continuous production
Industrial Homogenizers
Configured for production environments where throughput, uptime, sanitation, spare parts, and documentation drive the purchase decision.
500 L/h Industrial Homogenizer
| Pressure | Up to 1000 bar |
| Flow Rate | 500 L/h |
| Min Sample | 5 L |
| Application | Industrial Production |
1000 L/h Industrial Homogenizer
| Pressure | Project-specific |
| Flow Rate | 1000 L/h |
| Min Sample | Project-based |
| Application | Large Production |
Selection Questions Buyers Ask First
Use these answers to narrow the model before sending samples, process data, or a formal RFQ.
How do I choose between lab, pilot, and industrial models?
Start with your sample volume and target flow rate. Lab models fit R&D and expensive samples, pilot models validate process transfer, and industrial models support continuous production where throughput and uptime matter.
Which pressure range should I request?
Pressure depends on material viscosity, target particle size, heat sensitivity, and number of passes. Nanoemulsions and pharma formulations often need higher pressure validation than beverage or sauce stabilization.
Can one model handle food, pharma, and chemical applications?
The pressure platform can be similar, but product-contact materials, seals, cooling, cleaning, and documentation differ. Pharma and biotech projects may require sanitary design, GMP-ready documentation, and stricter cleaning validation.
What information should I send for a recommendation?
Send industry, material name, viscosity, target particle size, batch volume or hourly capacity, temperature limit, sanitation requirements, voltage, and whether you need lab testing, pilot validation, or production equipment.
Recommended Models by Application
These recommendations are a starting point. Final model selection should confirm pressure range, viscosity, number of passes, target particle size, and cleaning requirements.
| Application | Typical Goal | Lab / Pilot Model | Production Model |
|---|---|---|---|
| Yogurt, dairy, beverages | Texture, stability, reduced separation | 40 L/h Production Homogenizer | 500-1000 L/h Industrial Homogenizer |
| Injectable drugs and ophthalmic emulsions | Sterile submicron emulsion control | PTH-10 or PTH-20 | Custom GMP-ready configuration |
| mRNA-LNP and biotech formulations | Particle size control and formulation screening | 5-10 L/h or PTH-10 | Pilot/custom configuration |
| Graphene, CNT, paint, and coatings | Dispersion, deagglomeration, particle refinement | 10-20 L/h or 40 L/h | 500-1000 L/h Industrial Homogenizer |
Not Sure Which Model to Choose?
Send your application details and our engineers will recommend a pressure range, flow rate, and model configuration.
Application Analysis
We review your material, target particle size, viscosity, temperature limits, and sanitation requirements.
Model Recommendation
You receive a practical recommendation for lab testing, pilot validation, or industrial production.
Custom Options
Pressure range, flow rate, material, voltage, sanitary design, CIP/SIP, and documentation can be configured.
Technical team responds within 24 hours
Sample testing and OEM customization available
Quotation, specification sheet, and model guidance included
