Executive Summary
When choosing between microfluidizers and homogenizers for your industrial processing needs, understanding the key differences is crucial for optimal results. While both technologies excel at particle size reduction and emulsification, they serve distinct purposes: microfluidizers deliver superior nanoemulsions and uniform particle distribution, while homogenizers offer versatility and cost-effectiveness for broader applications.
What Are Microfluidizers and Homogenizers?

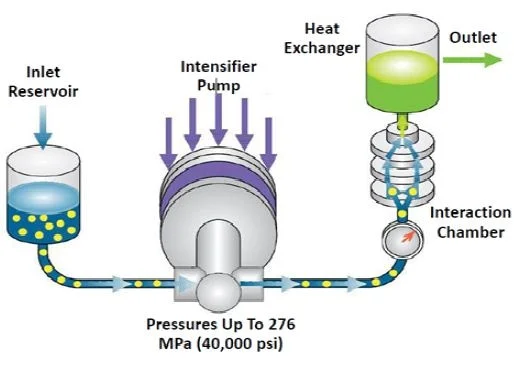

Microfluidizers
Microfluidizers use high-pressure fluid dynamics to create uniform particle size reduction through controlled impingement. The process involves forcing materials through specially designed interaction chambers at extremely high pressures (up to 40,000 PSI).
- Precise particle size control
- Consistent batch-to-batch results
- Ideal for nanoemulsions
- Superior uniformity
Homogenizers
Homogenizers employ mechanical force through valve systems to break down particles and create emulsions. They operate at lower pressures (typically 500-5,000 PSI) but offer greater versatility in handling various materials and viscosities.
- Versatile applications
- Cost-effective operation
- Handles high viscosity materials
- Established technology
Key Technical Differences
| Feature | Microfluidizer | Homogenizer |
|---|---|---|
| Operating Pressure | 15,000-40,000 PSI | 500-5,000 PSI |
| Particle Size Range | 10-200 nanometers | 0.1-10 micrometers |
| Uniformity | Exceptional (CV < 10%) | Good (CV 15-25%) |
| Processing Mechanism | Fluid impingement | Valve shear |
| Typical Applications | Nanoemulsions, liposomes | Dairy, cosmetics, pharmaceuticals |
Performance Comparison
Particle Size Reduction Efficiency
Microfluidizers excel in creating ultra-fine particles with exceptional uniformity. The controlled impingement process ensures consistent particle size distribution, making them ideal for applications requiring nanoscale precision. Studies show microfluidizers can achieve particle sizes 10-100 times smaller than traditional homogenizers.
Performance Highlight
In pharmaceutical applications, microfluidizers consistently produce liposomes with 95% of particles within the target size range, compared to 70-80% for conventional homogenizers.
Energy Efficiency
While microfluidizers operate at higher pressures, they often require fewer passes to achieve desired results, potentially reducing overall energy consumption. Homogenizers may require multiple passes but operate at lower individual energy requirements per pass.
Processing Capacity
Homogenizers typically offer higher throughput rates, making them suitable for large-scale production. Microfluidizers, while more precise, generally operate at lower flow rates but compensate with superior quality and consistency.
Industry Applications
Pharmaceuticals
Microfluidizers: Drug delivery systems, liposomes, nanoemulsions
Homogenizers: Suspensions, creams, ointments
Food & Beverage
Microfluidizers: Premium emulsions, functional foods
Homogenizers: Milk, juices, sauces, dressings
Cosmetics
Microfluidizers: High-end serums, nano-cosmetics
Homogenizers: Lotions, creams, foundations
Cost Analysis
Initial Investment
Microfluidizers typically require a higher upfront investment, with entry-level units starting around $150,000-$300,000. Homogenizers offer more accessible entry points, with basic models available from $50,000-$150,000.
Operating Costs
- Maintenance: Microfluidizers require specialized maintenance but less frequent component replacement
- Energy: Higher pressure operation but fewer processing passes needed
- Labor: Both systems require trained operators, with microfluidizers needing more specialized knowledge
Return on Investment
The ROI depends heavily on application requirements. For high-value products requiring superior particle uniformity, microfluidizers often justify their higher costs through premium pricing and reduced waste. For standard applications, homogenizers typically offer better cost-effectiveness.
Making the Right Choice
Decision Framework
Choose Microfluidizer When:
- Nanoscale particle size required
- Exceptional uniformity critical
- Premium product positioning
- Regulatory requirements strict
- Batch consistency paramount
Choose Homogenizer When:
- High throughput needed
- Cost efficiency priority
- Versatile processing required
- Established applications
- Maintenance simplicity important
Future Trends and Innovations
Technology Evolution
Both technologies continue evolving with digital integration, predictive maintenance, and enhanced automation. Microfluidizers are incorporating AI-driven process optimization, while homogenizers are improving energy efficiency and expanding pressure ranges.
Market Outlook
The global market for both technologies is expanding, driven by increasing demand for high-quality emulsions in pharmaceuticals, cosmetics, and functional foods. Microfluidizers show particularly strong growth in biotech applications, while homogenizers maintain dominance in traditional food processing.
Conclusion
The choice between microfluidizers and homogenizers ultimately depends on your specific processing requirements, quality standards, and economic considerations. Microfluidizers excel in applications demanding superior particle uniformity and nanoscale processing, while homogenizers offer proven versatility and cost-effectiveness for broader applications.
Consider conducting pilot testing with both technologies to evaluate performance with your specific materials and requirements. This investment in testing often pays dividends in optimizing your final equipment selection and process parameters.
