How Does a 2-Stage Homogenizer Work?
Understanding the dual-stage process that delivers superior particle size reduction and product consistency

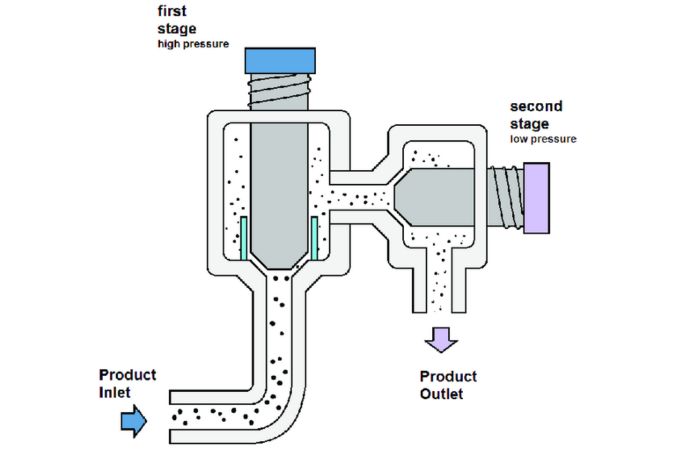

The Two-Stage Process
A 2-stage homogenizer employs two consecutive homogenizing valves to achieve superior particle size reduction and product uniformity. This dual-stage approach provides enhanced control over the homogenization process compared to single-stage systems.
The product flows through both stages in sequence, with each stage performing a specific function in the overall homogenization process.
Stage-by-Stage Breakdown
First Stage (Primary)
- High pressure disruption of particles
- Primary size reduction occurs
- Operates at higher pressure (typically 70-90% of total)
- Creates initial emulsion or dispersion
Second Stage (Secondary)
- Breaks up particle clusters
- Prevents reagglomeration
- Operates at lower pressure (typically 10-30% of total)
- Ensures uniform particle distribution
The Homogenization Process Flow
Product Input
Raw product enters the system
First Stage Valve
High pressure disruption
Second Stage Valve
Cluster breaking & stabilization
Final Product
Homogenized output
Key Operating Principles
Pressure Distribution
The total system pressure is distributed between both stages, with the first stage typically handling 70-90% and the second stage 10-30%.
Valve Gap Control
Each stage has independently adjustable valve gaps, allowing precise control over the homogenization intensity.
Sequential Processing
Product flows through both stages in series, with each stage building upon the work of the previous stage.
Advantages of 2-Stage Homogenization
Better Particle Size Control
Achieves more consistent and smaller particle sizes compared to single-stage systems
Reduced Reagglomeration
Second stage prevents particles from clustering back together after initial disruption
Enhanced Process Control
Independent pressure control for each stage allows fine-tuning of the homogenization process
Improved Product Stability
Results in more stable emulsions and dispersions with longer shelf life
Cost Efficiency
Optimized pressure distribution can reduce overall energy consumption while improving results
Versatile Applications
Suitable for a wide range of products from dairy to pharmaceuticals and cosmetics
